Frequency

Global-Band LTE CAT-M1, Global-Band LTE

Antenna interface

U.FL internal antenna connector

Chipset

SIM7000G

TCP/IP

Intergrated

PWRIN range

5.0V to 10V, 5.0V is recommend

Supplier Type

NB IOT

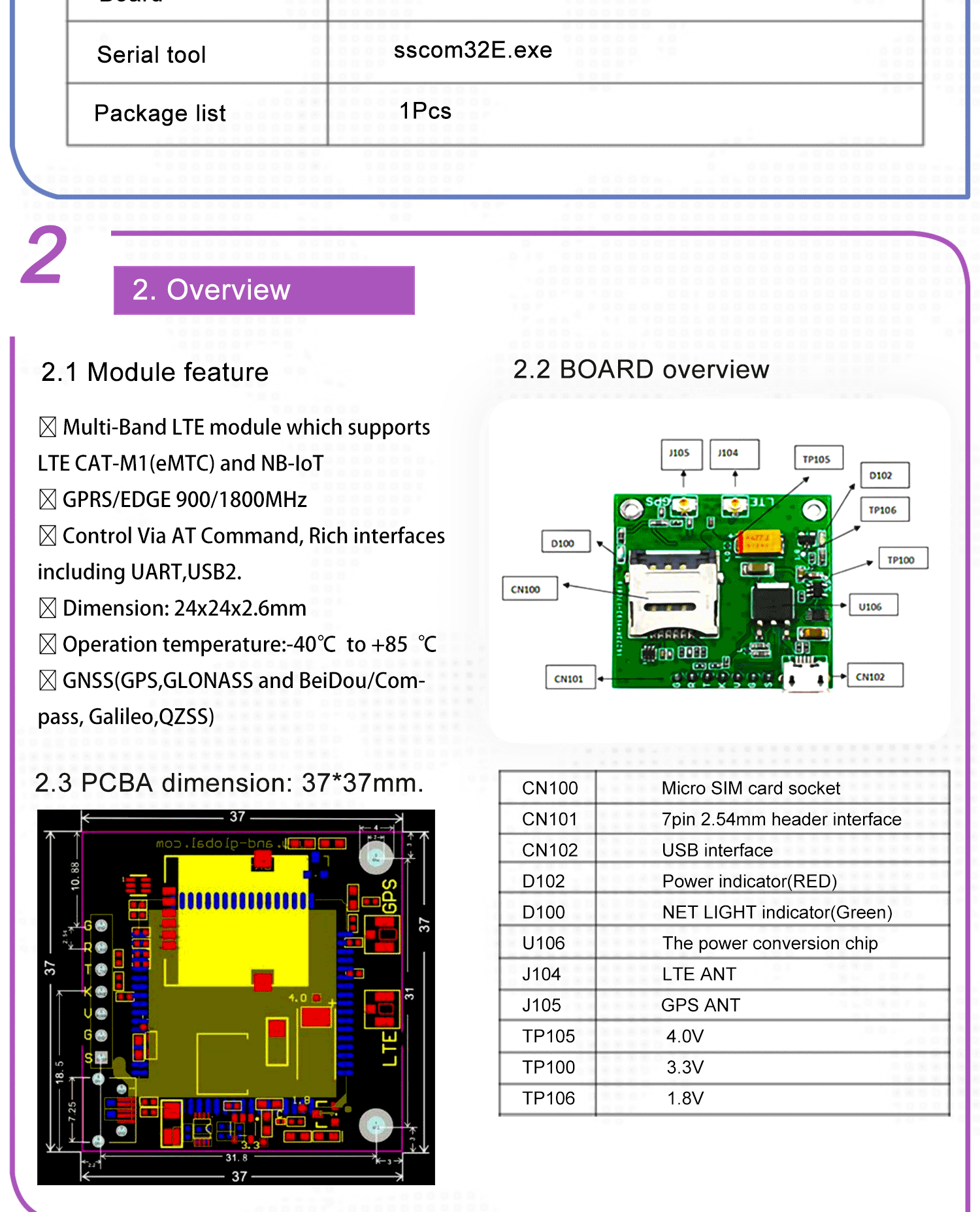

Board Size

37*37mm

Place of Origin

Guangdong, China

Application

4G

SIM7000X/SIM7070X/SIM7080X

SIMCOM LAUNCHES ITS NEW-GENERATION LPWA MODULE SOLUTION – SIM7070G/SIM7080G

SIMCom offers a new-generation LPWA module solution SIM7070G/SIM7080G. The two modules both adopt Qualcomm’s new-generation narrow-band IoT cellular chip – MDM9205, which supports LTE Cat M1 (eMTC), NB-IOT (NB1/NB2) and 2G/E-GPRS. It can well satisfy the demand for network connection in different vertical industries. Compared with the previous-generation SIM7000X module series, SIM7070G/SIM7080G have more highlights as the new-generation LPWA module solution.

What is the difference between SIM7070G and SIM7080G?

SIM7070G and SIM7080G are also NB modules. SIM7080G has the same size of SIM7020G; both are 17.6 X 15.7 X 2.3 mm. For SIM7070G, it is bigger than these two with 24X24X2. 3mm, and it is compatible with SIM868.

What size is SIM7080G?

The SIM7080 series adopts LCC and LGA form factor and has a compact size of 17.6mm*15.7mm which makes it ideal for compact products design. The SIM7080 series has powerful expansibility with abundant interfaces including UART, GPIO, PCM, SPI, I2C etc.

What is the baud rate of sim7080?

Baudrate: 300~3686400 bps. Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps. Comes with online development resources and manual (examples for Raspberry Pi/Arduino/STM32).

How to use SIM7070G Breakout kit/SIM7080G Breakout kit/ SIM7000G Breakout kit?

Welcome to contact with us, we guide and send you documents soon.

Product Details & Tech Facts

Description

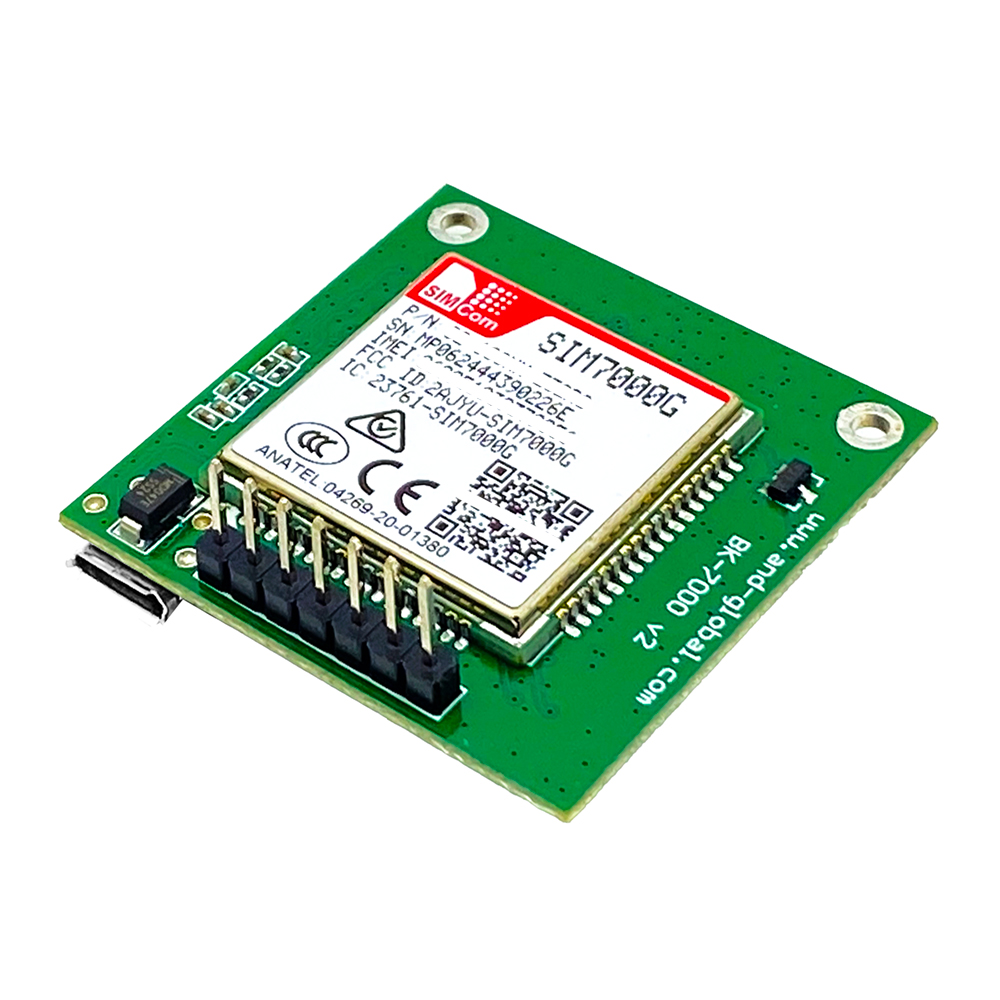

SIMCom SIM7000G is is global-Band LTE-FDD / TDD-LTE and Quad-Band GPRS/EDGE module solution in a LCC type which supports LTE CAT-M1(eMTC) and NB-IoT up to 375kbps data transfer.

It has strong extension capability with rich interfaces including UART, USB2.0, GPIO etc.

The package of SIM7000G is compatible with SIM900 and SIM800F. AT commands of SIM7000G are mostly compatible with SIM800F.

Key Benefits

● With Power Save Mode(PSM) and Extended Discontinuous Reception(eDRX), SIM7000G can extend battery life to 10 years

● SIM7000G provides deeper coverage enhancement compared to GSM

● The package and AT commands of SIM7000G mostly are compatible with SIM900 and SIM800F.

Also see SIMCom's interface board for SIMCom SIM7000G .
