SIM7000X/SIM7070X/SIM7080X
Usb Dongle Sim7070g Pc Iot Nb Sim7070 Lpwa Cat-m Cat-nb
5.0
design customization
Please fill out the form below to
request a quote or to request more
information about us. Please be sure to
upload customized requirement documents
or pictures, and we will get back to you
as soon as possible with a response.
we're ready to start working on your new
project, contact us now to get started.
Please fill out the form below to
request a quote or to request more
information about us. please be as
detailed as possible in your message,
and we will get back to you as soon as
possible with a response. we're ready to
start working on your new project,
contact us now to get started.
Chipset
SIM7070G
PWRIN range
5v
Supplier Type
USB 4G
Place of Origin
Guangdong, China
Application
4g
SIMCOM LAUNCHES ITS NEW-GENERATION LPWA MODULE SOLUTION – SIM7070G/SIM7080G
SIMCom offers a new-generation LPWA module solution SIM7070G/SIM7080G. The two modules both adopt Qualcomm’s new-generation narrow-band IoT cellular chip – MDM9205, which supports LTE Cat M1 (eMTC), NB-IOT (NB1/NB2) and 2G/E-GPRS. It can well satisfy the demand for network connection in different vertical industries. Compared with the previous-generation SIM7000X module series, SIM7070G/SIM7080G have more highlights as the new-generation LPWA module solution.
What is the difference between SIM7070G and SIM7080G?

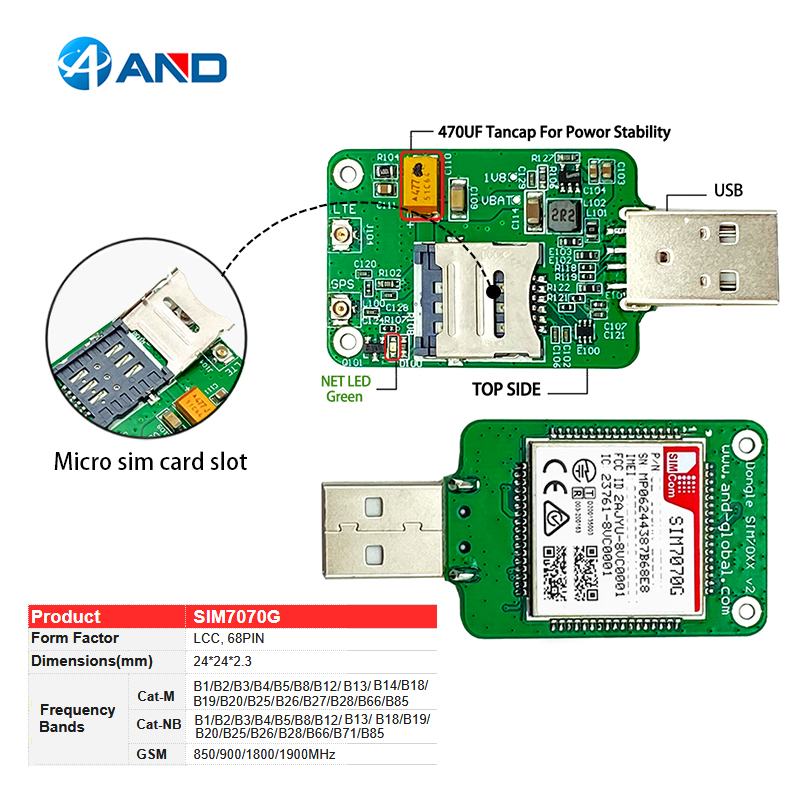

SIM7070G and SIM7080G are also NB modules. SIM7080G has the same size of SIM7020G; both are 17.6 X 15.7 X 2.3 mm. For SIM7070G, it is bigger than these two with 24X24X2. 3mm, and it is compatible with SIM868.
What size is SIM7080G?

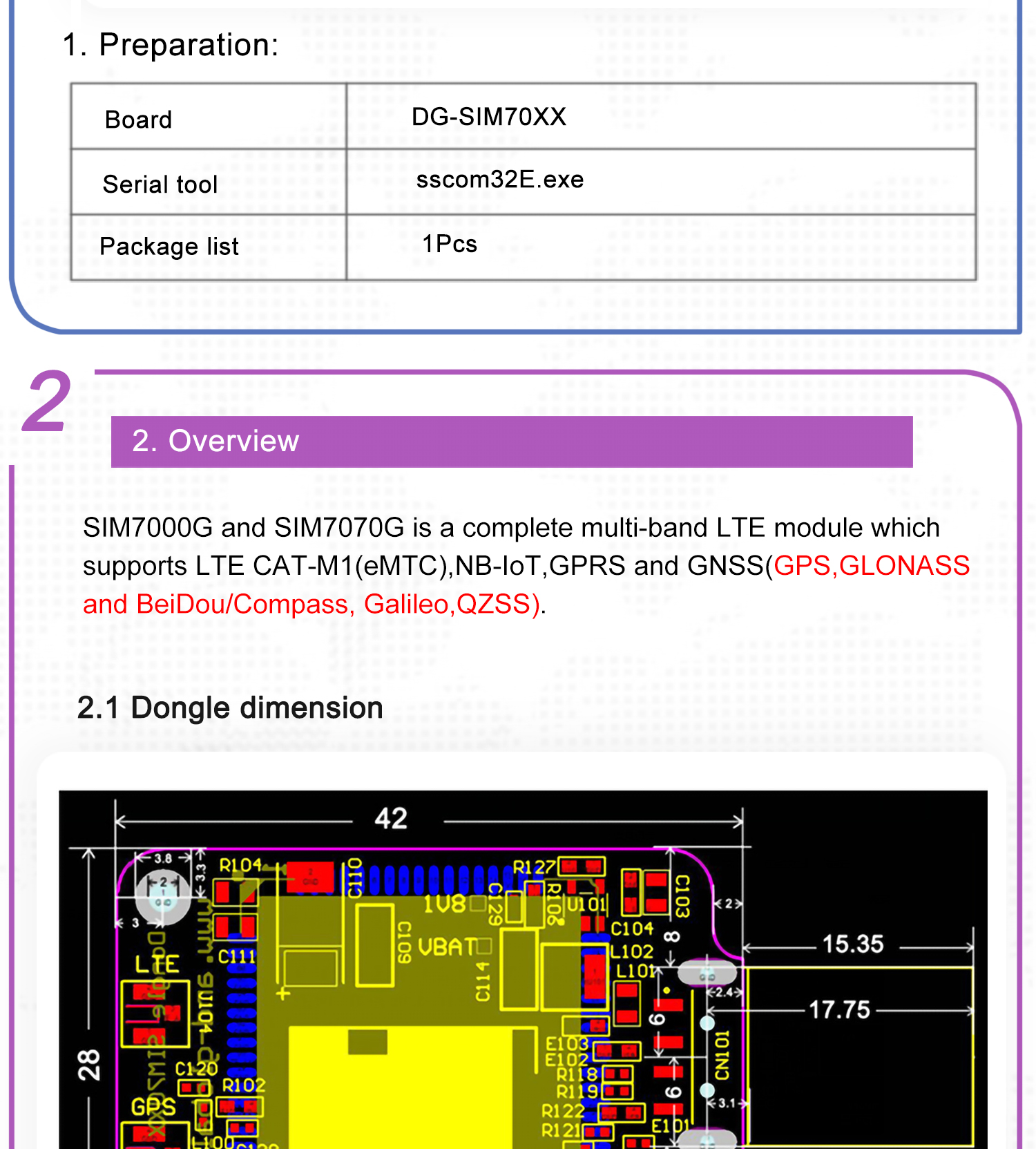

The SIM7080 series adopts LCC and LGA form factor and has a compact size of 17.6mm*15.7mm which makes it ideal for compact products design. The SIM7080 series has powerful expansibility with abundant interfaces including UART, GPIO, PCM, SPI, I2C etc.
What is the baud rate of sim7080?

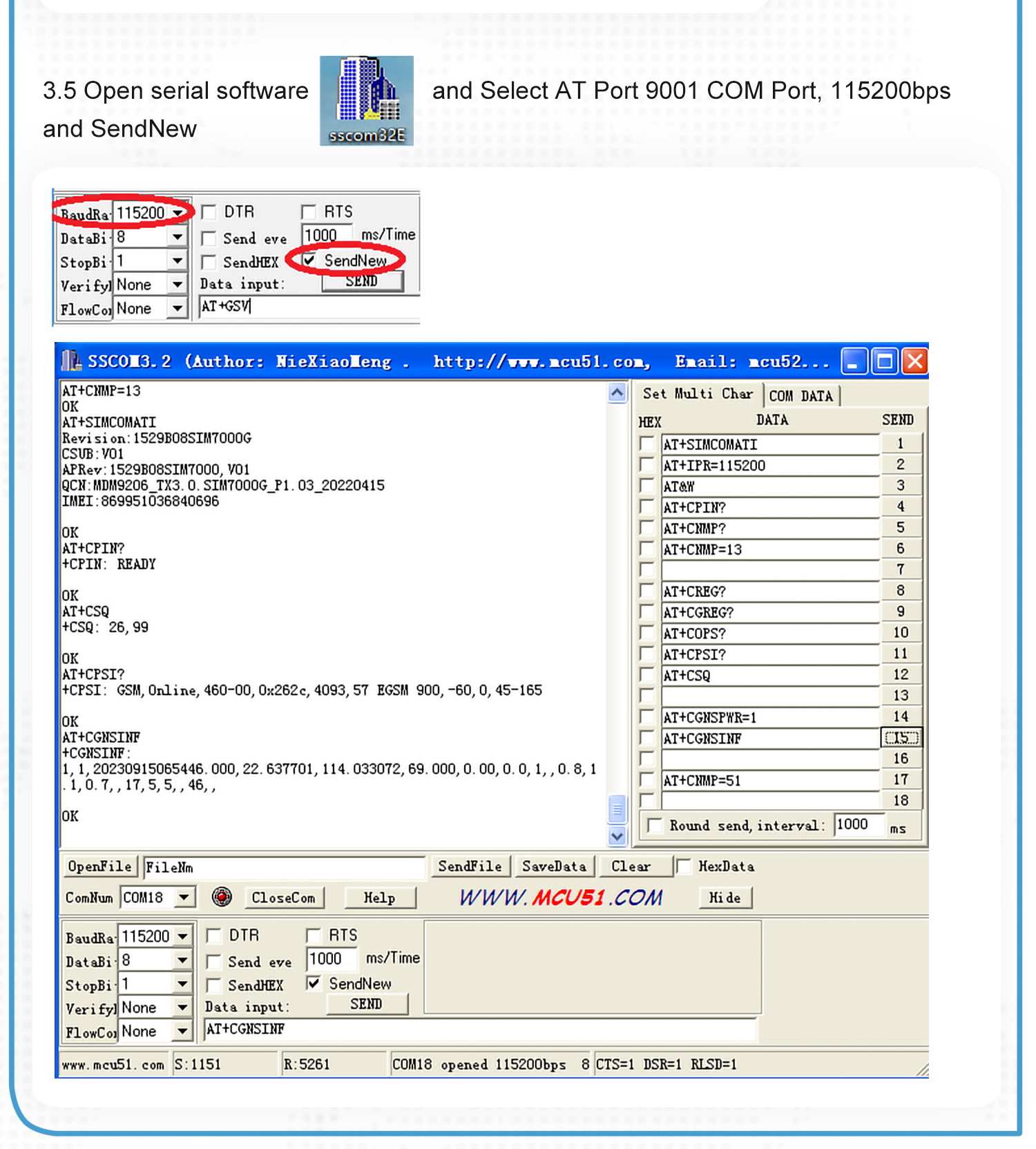

Baudrate: 300~3686400 bps. Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps. Comes with online development resources and manual (examples for Raspberry Pi/Arduino/STM32).
How to use SIM7070G Breakout kit/SIM7080G Breakout kit/ SIM7000G Breakout kit?
Welcome to contact with us, we guide and send you documents soon.
