ANDTech Focus on wireless module and hardware solution for 15 years.

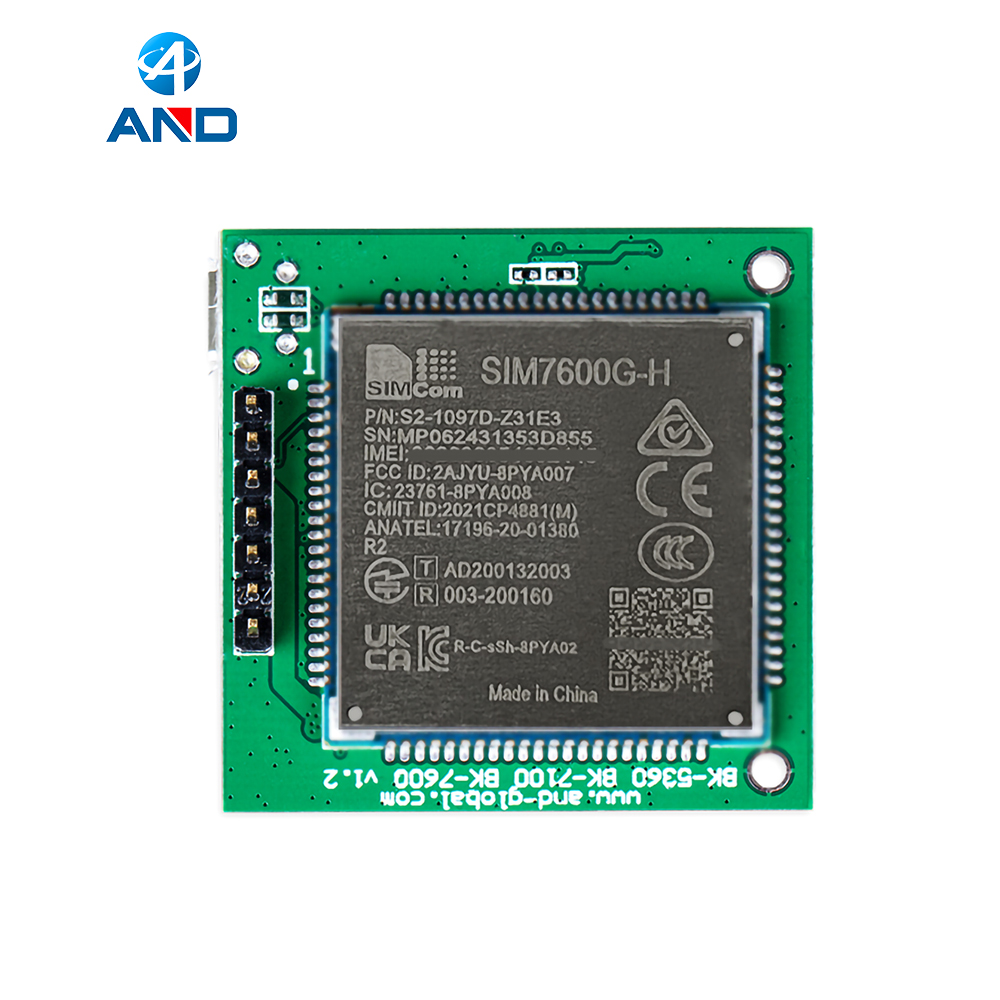

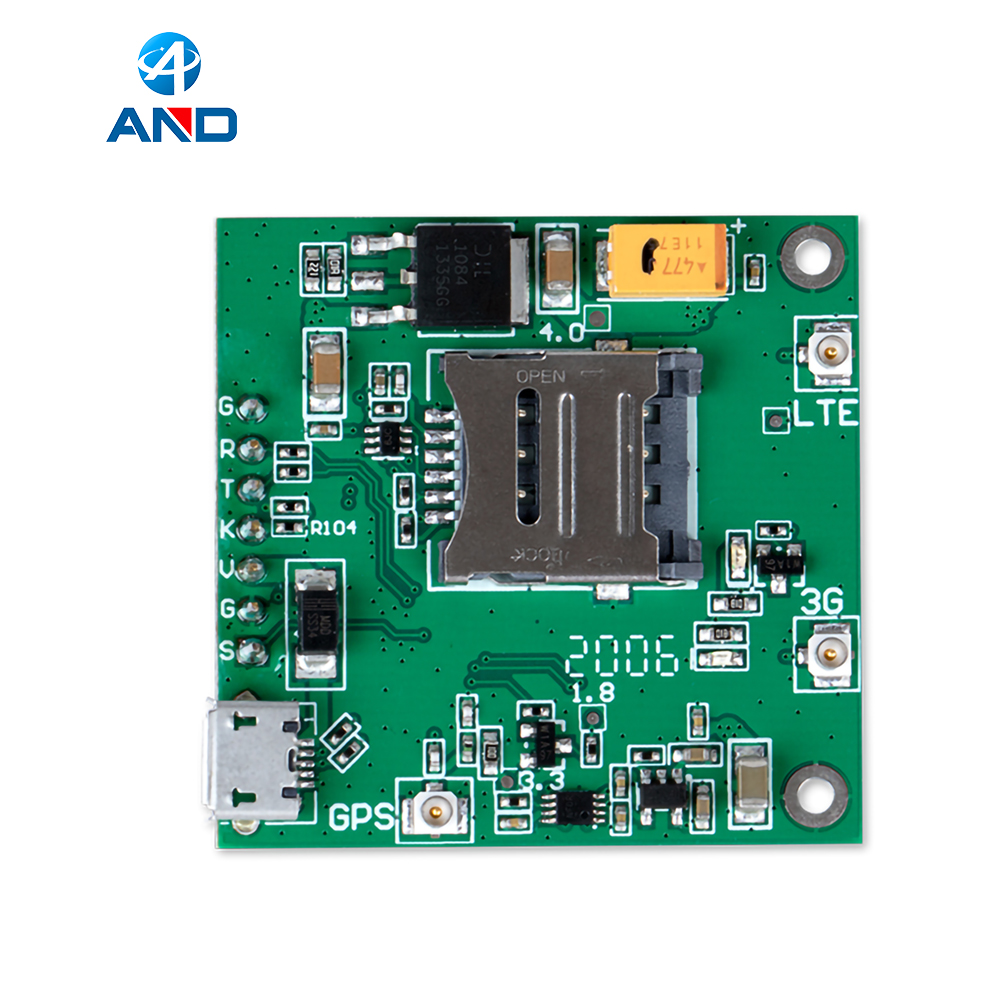

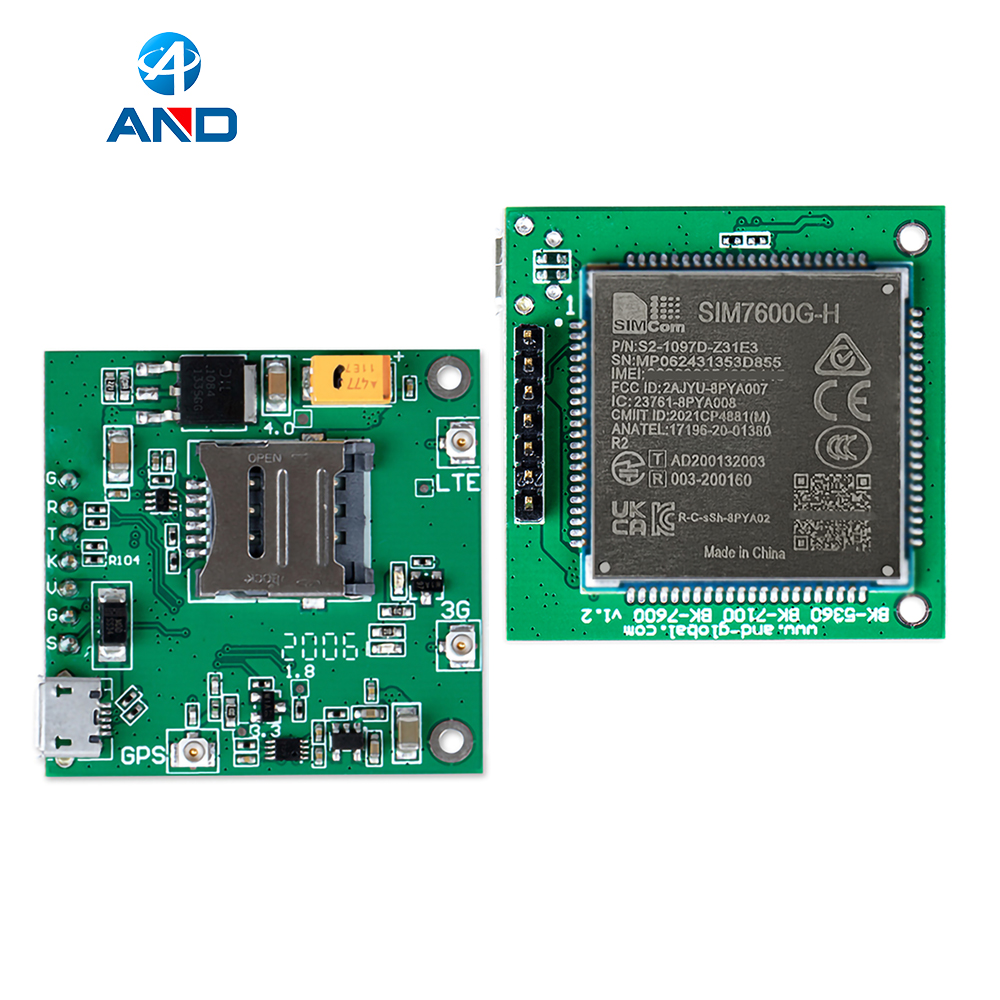

Sim7600g Breakout Board,Mini Sim7600g-h Cat 4 Kits With Gps 4g Antenna

oops...!

no product data.

Go to homepage

The SIM7600G-H is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc.

It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

The SIM7600G-H adopts LCC1 form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600 series(LTE modules), which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.

The SIM7600G-H series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600 series modules.

Meanwhile the SIM7600G-H integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

SIM7600G-H R2 Frequency

LTE-FDD B1/B2/B3/B4/B5/B7/ B8/B12/B13/B18/B19/ B20/B25/B26/ B28/B66

LTE-TDD B34/B38/B39/ B40/B41

UMTS/HSDPA/HSPA+ B1/B2/B4/B5/ B6/B8/B19

GSM/GPRS/EDGE 850/900/1800/1900MHz



SIM7600X



The SIMCom SIM7600SA is Multi-Band LTE-TDD/LTE-FDD module solution in a mPCIe form factor. SIM7600SA is a LTE CAT-1 /SIM7600SA-H is a LTE CAT-4module with support of up to 10Mbps downlink data transfer intended for the Australian, New Zealand and South American markets.

With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/DNS, the module provides much flexibility and ease of integration for customer's application

Which is better 4G or LTE?

4G is significantly faster. LTE offers only 100 Mbps, while true 4G offers up to 1,000 Mbps. However, if we take a look at the LTE-A speeds, the difference disappears as it also offers 1,000 Mbps. As a result, there is no clear answer as it depends on which technology you are using, LTE or LTE-A.

What is the current consumption of SIM7600?

SIMCOM SIM7600 GSM/GRPS/GPS/Bluetooth Modules will consume a peak current of 2A when communicating with the network.

What is the difference between GSM and LTE modems?

LTE and high-speed data transmission go hand in hand. LTE supports only data transmission, whereas GSM supports both data and voice. People have a tendency to trust LTE when they need highspeed Internet, but they tend to trust GSM when they primarily need to make phone call.

How to use SIM7600SA Breakout kit/SIM7600SA-H Breakout kit/SIM7600SA-MNSE Breakout kit?

Welcome to contact with us, we guide and send you documents soon.
